Pellet boilers

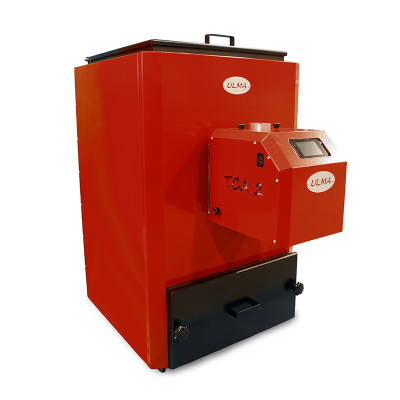

A small compact boiler, here in a package with an Ulma 2000 TCA 2 pellet burner. The boiler has a water volume of 29 L and is to be run against an accumulator tank of at least 150 L.

Measuring 54x97x64 (WxHxD), it can also fit in small boiler rooms.The ash box is very large and holds about 50 L.

The pellet boiler is tested and approved in accordance with EN 303-5:2012 class 5, and meets the strict requirements for Ecodesign 2020.

A pellet boiler for you who wants a reliable and economical heating system. The pellet boiler is made in Sweden, and maintains a very good quality. Equipped with automatic sweeping with the help of compressed air, which means that you only need to empty the ashtray a few times a year.

The pellet burner is equipped with an advanced control unit that handles the monitoring, safety functions and combustion. You control the burner via a touch display, which makes your installation very easy.

• Very high efficiency
• User-friendly with simple controller
• Reliable with as few moving parts as possible
• Extra large hot water loop
• Minimal maintenance

The pellet boiler has been tested and approved according to EN 303-5 2012: class 5, and of course meets the strict requirements for Ecodesign 2020.

The ECO boiler is a pellet boiler for you who want a reliable and economical heating system. The pellet boiler is made in Sweden, and maintains a very good quality.

The dimension of the combustion chamber is well adapted to today’s modern burners. High temperature in the combustion chamber gives clean and efficient combustion. The  long flue gas passages with large tubes through the convection part make the heat transfer very efficient. With its large water volume in combination with an extra long hot water loop provides plenty of fresh hot water for both showers and baths.

The boiler has by standard a 6 kW electric cartridge, which enables the boiler to hold its temperature without pellets, if you leave the home for a longer period. The ash box needs to be emptied a maximum of about 2-3 times a year depending on the property’s consumption, since it holds about 45 liters of ash.

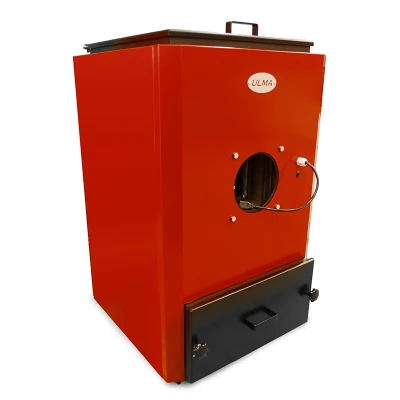

Ulma boiler Midi is a larger charging boiler that can be operated with pellet burners up to 60 kW. The boiler has a water volume of 72 L and should be run against an accumulator tank of at least 500 L. With the dimensions 72x129x86 (WxHxD) it also fits in smaller boiler rooms. The ash box is very large and holds about 73 L.

Boiler only.

The boiler is a compact boiler with a 60 kW Ulma ECO burner.

The boiler has a water volume of 72 L and requires a buffer tank of at least 500 L.

The pellet boiler is tested and approved in accordance with EN 303-5:2012 class 5.

This boiler is a small compact boiler with either a 20 kW or 25 kW ULMA pellet burner. The boiler has a water volume of 27 L therefore needs connection to a buffer tank of at least 150 L. With dimensions of 50x95x60 (WxHxD) the boiler requires a small boiler room. The ash pan has a generous capacity of about 50 L.

Picture shows our automatic self cleaning pellet burner mounted.

This boiler is a small compact boiler featuring a 20 kW or 25 kW Ulma pellet burner. The boiler has a water volume of 27 L requiring linking to a storage tank of at least 150 L. With dimensions of 50x95x60 (WxHxD) it needs a small boiler room space. The ash pan holds a generous 50 L.

Picture shows our Eco pellet burner mounted.

The pellet boiler is tested and approved in accordance with EN 303-5:2012 class 5, and meets the strict requirements for Ecodesign 2020.

The ULMA Lambda boiler is a compact and flexible boiler which is also equipped with a lambda controller, automatic shunt and wireless indoor sensor. This provides a high level of comfort and at the same time provides energy savings for the homeowner.

The dimension of the combustion chamber is well adapted to today’s modern burners. High temperature in the combustion chamber gives clean and efficient combustion. The long flue gas passages with large tubes through the convection part make the heat transfer very efficient. With its large water volume in combination with an extra long hot water loop provides plenty of fresh hot water for both showers and baths.

The boiler has by standard a 6 kW electric cartridge, which enables the boiler to hold its temperature without pellets, if you leave the home for a longer period. The ash box needs to be emptied a maximum of about 2-3 times a year depending on the property’s consumption, since it holds about 45 liters of ash.

The boiler is equipped with a lambda probe, which means that it automatically measures the gases so that correct combustion takes place, which results in better economy and longer durability. The boiler comes complete with our self-cleaning pellet burner TCA 2.

• Made in Sweden with excellent quality
• Very high efficiency
• User-friendly with simple menus
• Reliable with as few moving parts as possible
• Minimal maintenance

The pellet boiler has been tested and approved according to EN 303-5 2012 class 5, and meets the strict requirements for Ekodesign 2020.
