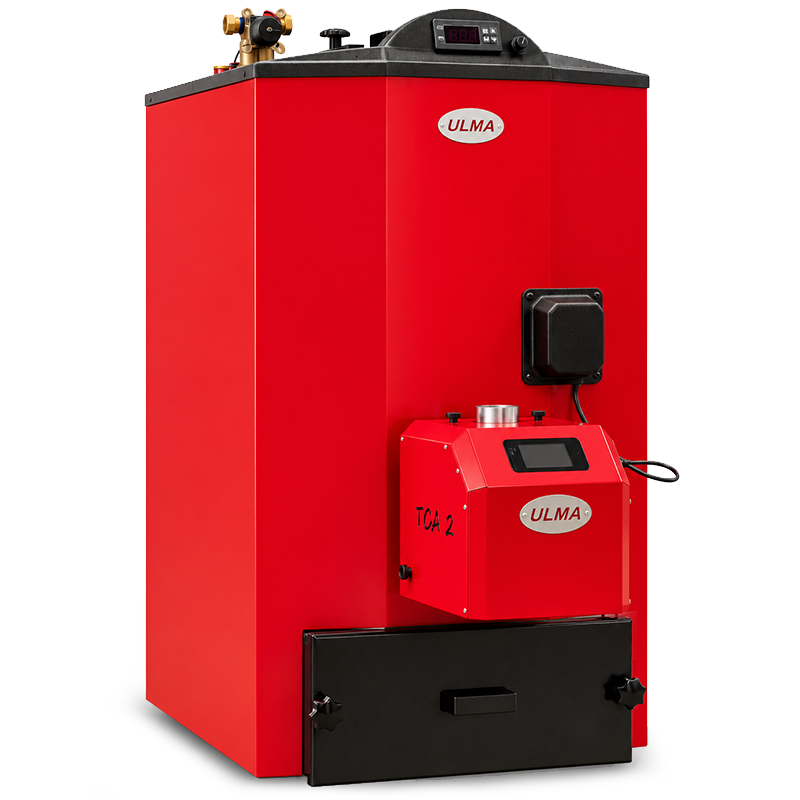

Package - ULMA ECO 20 KW + ULMA2000 TCA 2 Burner
A pellet boiler for you who wants a reliable and economical heating system. The pellet boiler is made in Sweden, and maintains a very good quality. Equipped with automatic sweeping with the help of compressed air, which means that you only need to empty the ashtray a few times a year.
The pellet burner is equipped with an advanced control unit that handles the monitoring, safety functions and combustion. You control the burner via a touch display, which makes your installation very easy.
- Very high efficiency
- User-friendly with simple controller
- Reliable with as few moving parts as possible
- Extra large hot water loop
- Minimal maintenance
The pellet boiler has been tested and approved according to EN 303-5 2012: class 5, and of course meets the strict requirements for Ecodesign 2020.
A pellet boiler for you who wants a reliable and economical heating system. The pellet boiler is made in Sweden, and maintains a very good quality. Equipped with automatic sweeping with the help of compressed air, which means that you only need to empty the ashtray a few times a year.
The pellet burner is equipped with an advanced control unit that handles the monitoring, safety functions and combustion. You control the burner via a touch display, which makes your installation very easy.
- Very high efficiency
- User-friendly with simple controller
- Reliable with as few moving parts as possible
- Extra large hot water loop
- Minimal maintenance
The pellet boiler has been tested and approved according to EN 303-5 2012: class 5, and of course meets the strict requirements for Ecodesign 2020.
Package - ULMA ECO 20 KW + ULMA2000 TCA 2 Burner
A pellet boiler for you who wants a reliable and economical heating system. The pellet boiler is made in Sweden, and maintains a very good quality. Equipped with automatic sweeping with the help of compressed air, which means that you only need to empty the ashtray a few times a year.
The pellet burner is equipped with an advanced control unit that handles the monitoring, safety functions and combustion. You control the burner via a touch display, which makes your installation very easy.
- Very high efficiency
- User-friendly with simple controller
- Reliable with as few moving parts as possible
- Extra large hot water loop
- Minimal maintenance
The pellet boiler has been tested and approved according to EN 303-5 2012: class 5, and of course meets the strict requirements for Ecodesign 2020.
kr77,800
Tax included
Rikligt tappvarmvatten
Lång varmvattenslinga
200 liter vatten
Robust konstruktion
Stor asklåda
Hög verkningsgrad
Svensktillverkad
Automatisk renblåsning
1209
40 Items
Data sheet
- Output
- 12-20 kW
- Efficiency burner
- approx. 90-92%
- Electricity consumption (average)
- 40 W
- Weight burner
- 12.5 kg
- Dimensions of fireplace (diameter x length)
- 156 x 220 mm
- Tension in voltage
- 230V VAC
- Length of standard screw
- 1,7 m
- Max working pressure
- 1.5 bar
- Smoke pipe
- 120 x 120 mm
- Water volume
- 200 L
- Min. chimney area
- 80 cm2
- Connection hole (burner)
- Ø 154 mm
- Height inside the hearth
- 350 mm
- Electrical connection
- 400 VAC
- Warranty
- 5 years
- Min. underpressure
- 1.5 / vp
- Max effect
- 20kW
- Hot water spiral
- 11 m
- Electric cartridge (standard)
- 6 kW
- This package includes
- Pellet boiler, pellet burner, feed screw, flue pipe, soot wiper, compressor with hose
- Energibidrag
- Ja
