Package - Ulma Boiler Mini TCA

Package - Ulma Boiler Mini TCA

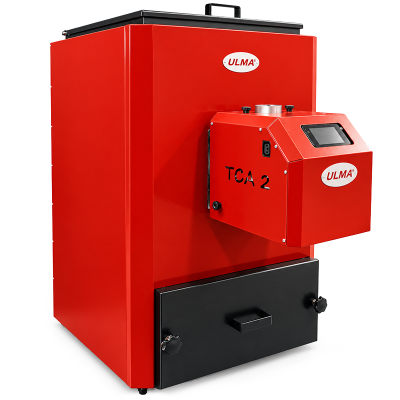

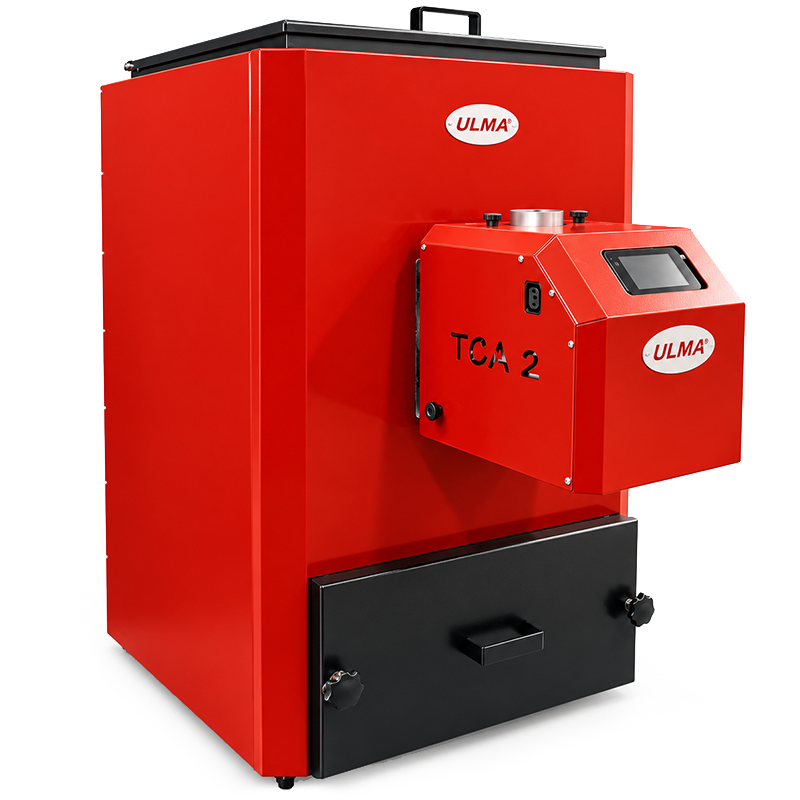

A small compact boiler, here in a package with an Ulma 2000 TCA 2 pellet burner. The boiler has a water volume of 29 L and is to be run against an accumulator tank of at least 150 L.

Measuring 54x97x64 (WxHxD), it can also fit in small boiler rooms.The ash box is very large and holds about 50 L.

The pellet boiler is tested and approved in accordance with EN 303-5:2012 class 5, and meets the strict requirements for Ecodesign and the German BImSchV.2 requirements.

Tax included
In stock
96 Items

Data sheet

12-20 kW
Efficiency burner
Electricity consumption (average)
40 W
Weight burner
12,5 kg
Dimensions outside the boiler (wxhxd)
230 x 295 x 335 mm
Dimensions of fireplace (diameter x length)
156 x 220 mm
Tension in voltage
230V AC
Length of standard screw
1,7 m
Max working pressure
1,5 bar
Smoke pipe
130 mm
Water volume
29 L
Min. chimney area
80 cm²
Electrical connection
230 VAC
Min. underpressure
1,5 / vp
Max effect
25 kW
54 x 97 x 64 cm
Volume ash box
50 L
This package includes
Pellet boiler, pellet burner, auger and motor, smoke pipe, compressor with hose
Efficiency boiler
≥ 90%
Weight boiler
150 kg
