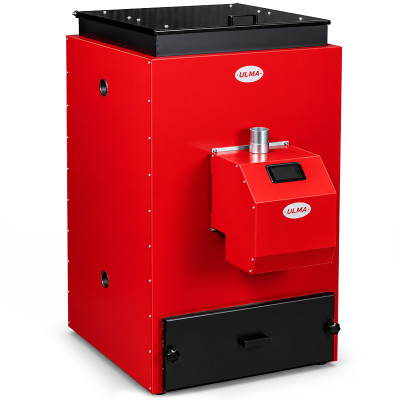

Ulma boiler Midi Eco

Ulma boiler Midi Eco

The boiler is a compact boiler with a 60 kW Ulma ECO burner.

The boiler has a water volume of 72 L and requires a buffer tank of at least 500 L.

The pellet boiler is tested and approved in accordance with EN 303-5:2012 class 5.

In stock
kr77,500.00
Tax included

  • cms_img
  • cms_img
  • cms_img
1090

Data sheet

Output
20-60 kW
Efficiency burner
Över 90%
Electricity consumption (average)
65 W
Weight burner
325 kg
Dimensions outside the boiler (wxhxd)
302 x 434 x 305 mm
Dimensions of fireplace (diameter x length)
143 x 331 mm
Tension in voltage
230V AC
Length of standard screw
1,7 m
Max working pressure
3 bar
Smoke pipe
160 mm
Water volume
72 L
Min. chimney area
200 cm2
Electrical connection
230 VAC
Min. underpressure
1,5 / vp
Max effect
60 kW
Dimensions
72 x 129 x 86 cm
Volume ash box
73 L
Energy efficiency index
A+
Ecodesign approved
Yes
This package includes
Pellet boiler, pellet burner, auger and motor, hose for compressor. Compressor is not included.

You might also like

Technical data - Pellet boiler
Dimensions 72 x 129 x 86 cm
Volume ash box 73 L
Ecodesign approved Yes
Electrical connection 230 VAC
Energy efficiency index A+
Max working pressure 3 bar
Max effect 60 kW
Min. chimney area 200 cm2
Min. underpressure 1,5 / vp
Smoke pipe 160 mm
Water volume 72 L
Technical data - Pellet burner
Output 20-60 kW
Electricity consumption (average) 65 W
Length of standard screw 1,7 m
Dimensions of fireplace (diameter x length) 143 x 331 mm
Dimensions outside the boiler (wxhxd) 302 x 434 x 305 mm
Tension in voltage 230V AC
Efficiency burner Över 90%
Weight burner 325 kg
What's included in this package
This package includes Pellet boiler, pellet burner, auger and motor, hose for compressor. Compressor is not included.
